Supported by an engineering team with expertise in electrical machines, power electronics and control systems, from analytical design through to validated hardware.
What We Supply
Comprehensive motion control solutions.

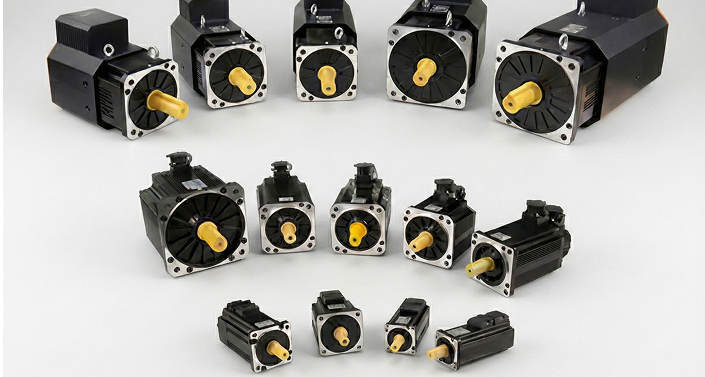

Servo Motors
Permanent magnet synchronous servo motors in multiple cooling formats and frame sizes, including high-speed and direct-drive torque series.
Key Selection Parameters
Torque & speed range • Cooling method • Encoder type

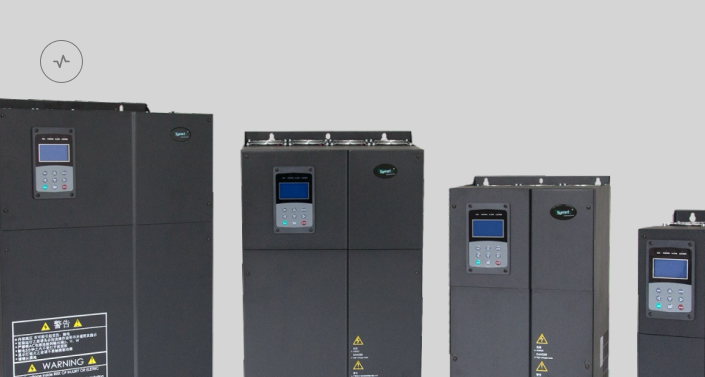

Servo Drives
Servo drives for torque, speed and position control. Options include analogue command, pulse interfaces, and industrial fieldbus variants.
Key Selection Parameters
Supply voltage • Feedback type • Control interface • Comms

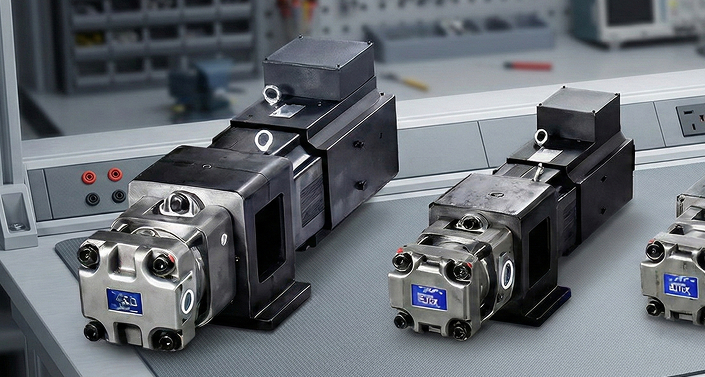

Electro-Hydraulic Servo Systems
Matched motor, drive and pump packages for hydraulic machinery, intended to simplify integration and enable energy-saving hydraulic control at system level.
Key Selection Parameters
Pressure & flow targets • Duty cycle • Cooling • Pump selection
Options & Accessories
Configuration and integration options across the range, including encoder variants, brake options, geared variants, and servo-specific EMI filters.
Key Selection Parameters
Feedback resolution • Holding brake • EMC constraints
Motor ranges and cooling options
Servo motor families covering compact motion control through to high-power systems.
Family Ranges
Cooling Method
Power (kW)
Torque
Speed (rpm)
Cooling Method
0.75−11
1−50
1000−3000
Forced-air cooling
11−250
70−1600
1000−3000
Liquid-cooled
15−300
100−2000
1000−3000
Natural cooling
Forced-air cooling
Liquid-cooled
Design characteristics
Low torque ripple and reduced acoustic noise.
High dynamic response via low inertia designs
Incremental and absolute encoder options available (series dependent).
Specialised series
High-speed series
Power
1.5–22 kW
Speed
6,000–22,000 rpm
Direct-drive Torque Series
Torque
1,000–6,000 N·m
Speed
200–600 rpm
Planetary Geared Servo Motors
Geared variants for compact torque multiplication.
See catalogue tables for ratios and outputs.
Drive Performance & Interfaces
Performance Specification
Performance Specification
≥400 Hz
PWM switching frequency
4 to 16 kHz
Pulse input frequency
≤2 MHz
Variable speed ratio
≥1:5000
Speed fluctuation
<±0.02% (load 0 to 100%)
Overload capacity
≥150% rated current (60 s), 180% (6 s)
Position feedback
Resolver, incremental encoder, absolute encoder (options by series)
Analogue command
-10 V to +10 V differential, 0 to +10 V unipolar
Communications options
RS232, RS485
Fieldbus options
RS485 Modbus, CANopen, EtherCAT (options by series)
Digital I/O
7 programmable inputs, 4 programmable outputs
Protection functions
Over-voltage, under-voltage, short circuit, over current, overload, overheat, stall, position out of tolerance
Interfaces and protection sets vary by series and interface board. Confirm against the final part number.
Where these systems are typically used
Hydraulic Machinery
Injection molding, die casting, hydraulic presses.

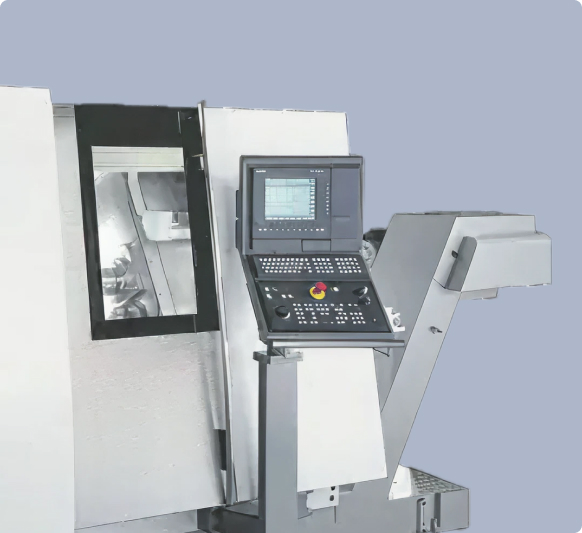

CNC & Automation
Machine tools and general motion control.
Textile Machinery
Precision speed and tension control.
Printing & Packaging
High-speed registration and feed systems.
Elevators & Hoisting
Industrial handling and vertical transportation.
Supply with Engineering Support
Selection Support
Defensible motor and drive selection from requirements, not guesswork.
In Practice
Duty cycle & interface capture, compatibility cross-check.
Integration Support
Reduced commissioning risk through interface and setup support.
In Practice
Feedback & wiring guidance, control mode setup.
Fast, Configured Quotations
Configured part numbers with options, lead times and a clear delivery route.
In Practice
Part # config, consolidated docs per quote.
Synmot Servo Catalogue
Servo motors, drives, electro-hydraulic systems, and filters.
Download PDF catalogue
Request a Synmot Quote
Send part numbers if you have them. If not, describe the application and performance targets and we will propose a motor and drive selection for quotation.
Need a motor and drive selection reviewed?
Share requirements and constraints and we will respond with a proposed configuration and quotation route.
